Jeil SNA HYDRAULIC BREAKER

BUCKET CRUSHER & SCREEN BUCKET

CRUSHING BUCKET
Rock & Concrete Crushing

Demolition & Recycling

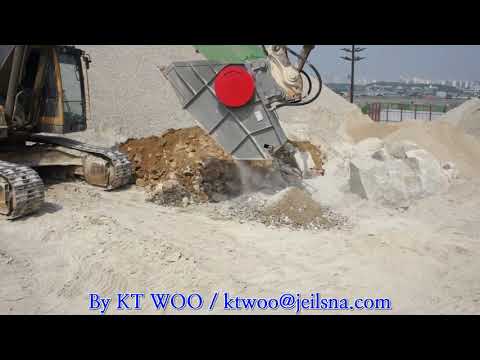

KTBC 3000 is engineered to crush concrete (reinforced) and rocks and have a robust structure to endure severe working conditions.

SPECIFICATIONS

SPECIFICATIONS

MODEL SPEC KTBC20 KTBC30
Carrier weight ton 22.0 ~ 29.0 30.0 ~ 45
Operating Weight Kgs 3.65 4.95
Operating Weight lbs 8047 10913
Bucket Capa ㎥ 0.6 0.8
Working Pressure Kg/㎠ (bar) 250 250
Setting Pressure psi 3.558 ~ 3.842 3.842 ~ 4.269
Required  oil flow (L / min) 250 ~ 270 250 250
Oil flow gpm 47.52 58.08
Input of Bucket mm 1050 X 550 1250 X 500
Input of Bucket inch 41.32 X 21.65 49.2 X 21.65
Input size mm 300 ~ 350 350 ~ 400
Input size inch 11.82 ~ 13.77 13.77 ~ 15.74
Output size mm 20 ~ 120 20 ~ 160
Output size inch 0.79 ~ 4.72 0.79 ~ 6.29
Bucket Dimension Width 1.37 mm 1.65 mm
53.94 inch 64.96 inch
Length 2.419 mm 2.55 mm
95.24 inch 100.39 inch
Heith 1.28 mm 1.4 mm
50.39 inch 55.12 inch

20TONS OUTPUT (ESTIMATION)

Rough stone
under 300mm		 mm 20 30 40 50 60 70 80 90 100 110 120
10/min 1.6 2.4 3.2 4 5 6 6.8 7.6 8.2 9 12
60/min 8 12 16 20 25 30 34 38 41 45 60
Cement
under 400mm		 mm 20 30 40 50 60 70 80 90 100 110 120
10/min 3 3.5 5 6.2 7.5 9 10.2 11.4 12.6 13.7 14.8
60/min 16.5 17.5 25 31 37.5 45 51 57 63 68.5 74
Coal
under 500mm		 mm 20 30 40 50 60 70 80 90 100 110 120
10/min 4 4.5 5.7 6.9 8 9.2 10.4 11.6 12.8 14 15.4
60/min 20 23.5 28.5 34.5 42 48 55 63 77 84 94

30TONS OUTPUT (ESTIMATION)

Rough stone
under 400mm		 mm 20 30 40 50 60 70 80 90 100 110 120
10/min 2 3.5 4.8 6 7.2 8 9 10.2 11.4 12.6 14
60/min 10 17.5 24 30 36 40 45 50.1 57 63 70
Cement
under 500mm		 mm 20 30 40 50 60 70 80 90 100 110 120
10/min 4 4.5 5.7 7.5 9 10.4 12 13.4 14.8 16 17.5
60/min 20 22.5 28.5 35 45 52 60 67 74 80 87.5
Coal
under 600mm		 mm 20 30 40 50 60 70 80 90 100 110 120
10/min 7 7.7 8.4 9.2 10.8 11.7 12.8 14 15 16.5 18.5
60/min 35 38.5 42 46 54 58.5 64 70 75 82.5 92.5
BROCHURE DOWNLOAD (BUCKET CRUSHER & SCREEN BUCKET)

GALLERY

Certified with Europe CE standard
Easier and Faster maintenance
High impact energy and Low noise level
